SP101E IC WS2811 Strip Controller w/ Remote DC 5V 2450 Pixels

  • Sale
  • $ 10
  • Regular price $ 25

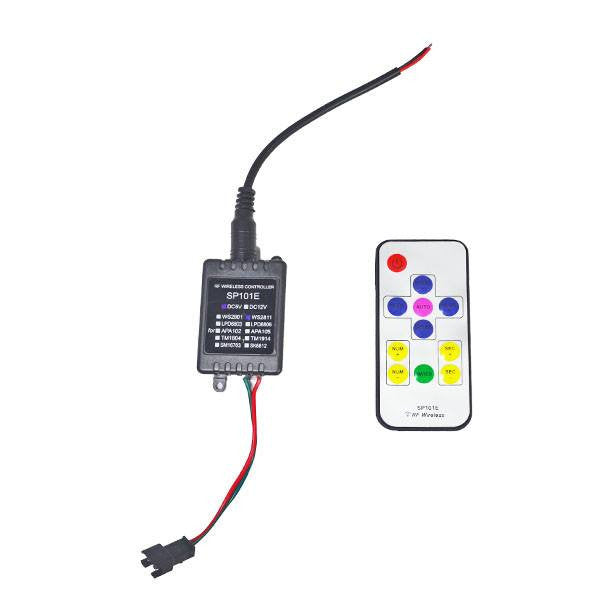

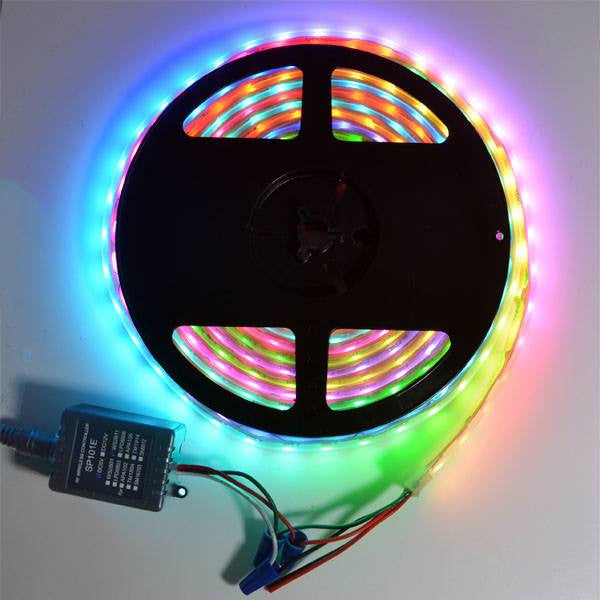

This is a simple to use RF controller for the WS2811 individually addressable LED strips. Works for both 5V and 12V strips.

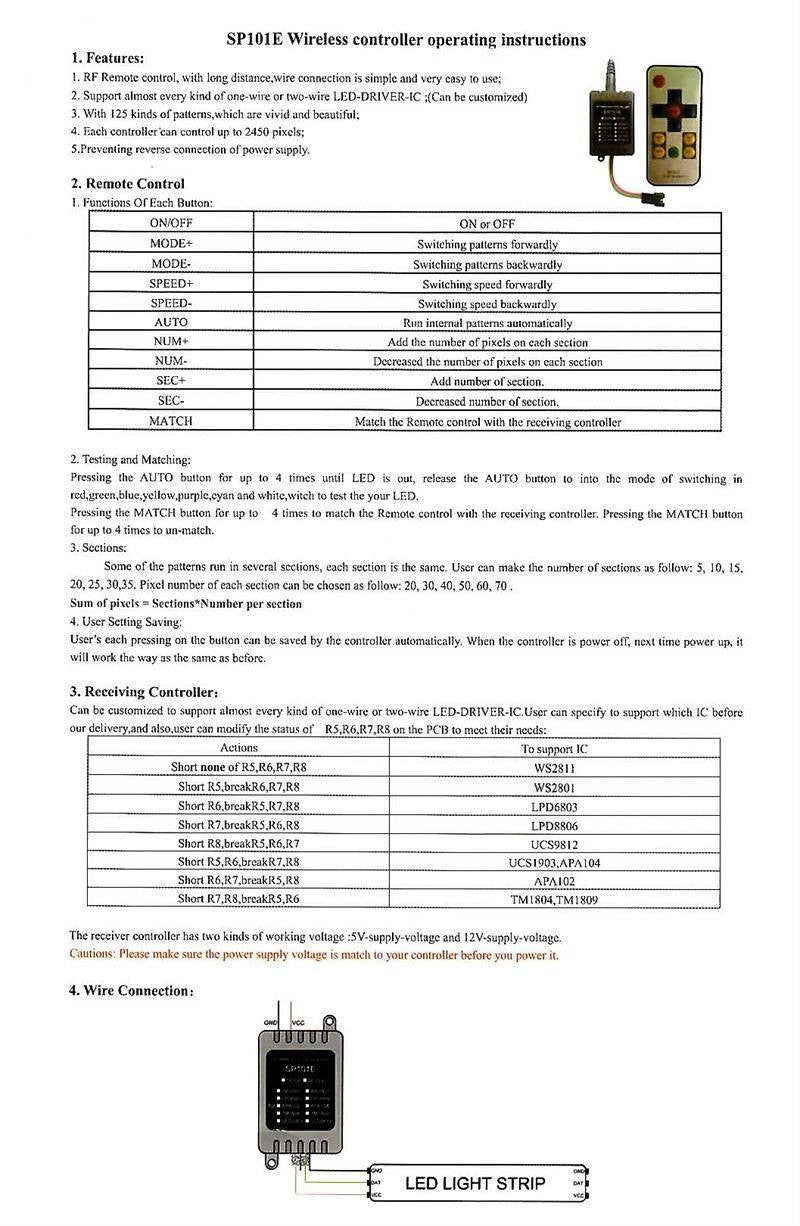

Features:

  1. RF Remote control, with long distance,wire connection is simple and very easy to use;
  2. Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)
  3. With 125 kinds of patterns,which are vivid and beautiful;
  4. Each controller can control up to 2450 pixels;
  5. Preventing reverse connection of power supply.

    Remote Control:

    Functions Of Each Button:

    ON/OFF

    To control the LED ON or OFF

    MODE+

    Switching patterns forwardly

    MODE-

    Switching patterns backwardly

    SPEED+

    Switching speed forwardly

    SPEED-

    Switching speed backwardly

    AUTO

    Run internal pattern automatically

    NUM+

    Add the number of pixels on each section

    NUM-

    Decreased the number of pixels on each section

    SEC+

    Add number of section.

    SEC-

    Decreased number of section.

    MATCH

    Match the Remote control with the receiving controller



    Testing and Matching:

    Pressing the AUTO button for up to 3 seconds until LED is out, release the AUTO button to into the mode of switching in red,green,blue,yellow,purple, cyan and white,witch to test the your LED.

    Pressing and hold the MATCH button for up to 3 seconds to match the Remote control with the receiving controller.

    Pressing and hold the MATCH button for up to 3 seconds to un-match.

    Sections:

    Some of the patterns run in several sections, each section is the same.

    User can make the number of sections as follow: 5, 10, 15, 20, 25, 30,35. Pixel number of each section can be chosen as follow: 20, 30, 40, 50, 60, 70 .

    Sum of pixels = Sections*Number per section

    User Setting Saving:

    User’s each pressing on the button can be saved by the controller automatically.

    When the controller is power off, next time power up, it will work the way as the same as before

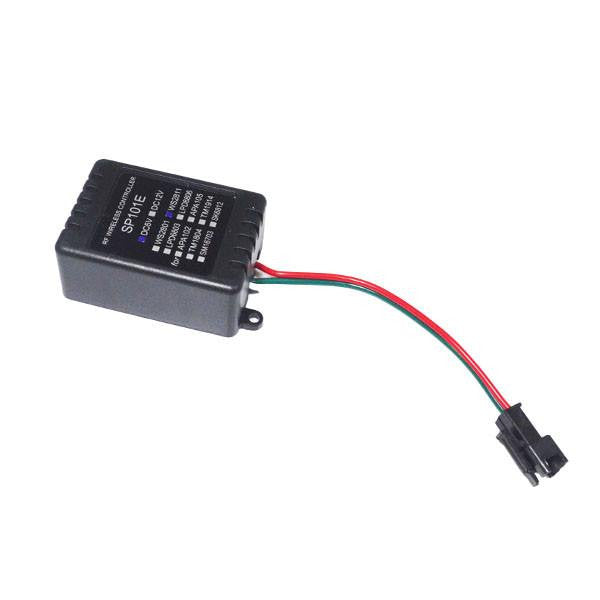

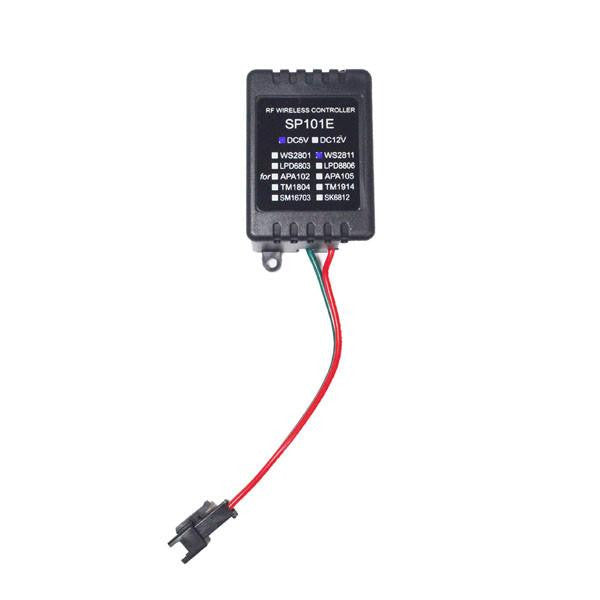

    Receiving Controller:

    Can be customized to support almost every kind of one-wire or two-wire LED-DRIVER-IC .

    User can specify to support which IC before our delivery,and also,user can modify the status of  R5,R6,R7,R8 on the PCB to meet their needs:

    Actions

    To support IC

    Short none of R5,R6,R7,R8

    WS2811

    Short R5,breakR6,R7,R8

    WS2801

    Short R6,breakR6,R7,R8

    LPD6803

    Short R7,breakR6,R7,R8

    LPD8806

    Short R8,breakR5,R6,R7

    UCS9812

    Short R5,R6,breakR7,R8

    UCS1903,APA104

    Short R6,R7,breakR5,R8

    APA102

    Short R7,R8,breakR5,R6

    TM1804,TM1809



    Cautions: Please make sure the power supply voltage matches your controller before you power it.
