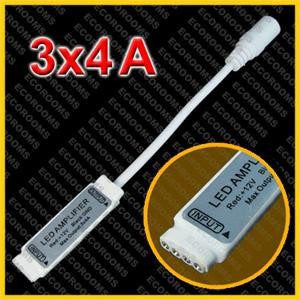

Mini RGB Strip Amplifer with DC Jack |
Working Voltage: |
12V |
Output Channel: |
3 (RGB) |
Max Output Current : |
12A (3x4A) |
Max Output Power : |
144W (12A x 12V) |
Estimation of Max. Length of strips: |
5m x2 : 12V 5050 60LED/m 10m x2 : 12V 5050 30LED/m (24V can double the length) |
Length: |
L145 MM |
Internal jack diameter: |
2.1mm (standard size) |
External jack diameter: |
5.5mm (standard size) |
Weight: |
8g |
|
|
Smallest RGB Amplifer on the current market !
Simplest solution when you need to add more RGB Strip Light.
This amplier's max output current is 12A/144W, with 12A DC converter you can connect another 20m (10m x2) of 30LED/m or 10m (5m x2) of 60LED/m as you can see in the chart left. It comes with DC Female Jack for easy installation! Install this mini yet powerful RGB amplifer, and double your RGB Strip Light!
|
