Decode CH: |
1~3 |
Input Signal: |
DMX-512/1990 digital signal |
Output Signal |
0-24V PWM signal,can drive 5A (each CH) |
Power Supply: |
DC 12 ~ 25V |
Power Dis: |
<1W |
Powe Output: |
<360W (24V), <180W (12V) |
Operating Temp: |
0 ~ 70 degree |
Item Size: |
175mm x 41.5mm x 33.5mm |
Package size: |
180mm x 43mm x 38mm |
Net weight: |
242.5g |
Gross weight: |
255g |
Warranty: |
1 year |
|
|

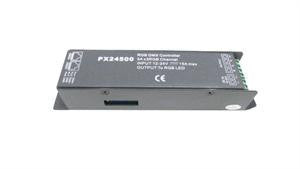

Thank you for using PX series DMX512 decoder^_^ With advanced micro-computer control technology, PX series convert the widely used DMX512/1990 signal to analog signal. Can choose 1-3 output channel, 256-level brightness control. For connecting of light console and analog device, or lighting & building lamps controlling.
FEATURES:
- Meets DMX512/1990
- 256-level brightness, full-color control
- 3 output CH., can drive 5A (Each CH.)
- With control system, can express perfect effect
- Can drive 1-3 channel of each lamp
- Can set the DMX address freely
- High interference resistant, over-heat and over-current protect, self-recovery function available
|
