White LED Rotary DC12V-24V Inline Single Color LED Dimmer 144W 12A

  • Sale
  • $ 5
  • Regular price $ 10


Single color dimmer can achieve step-less dimming. It adopts the knob control manner. According to actual needs, users can transfer the light to the appropriate brightness.



Technical Parameters

Working temperature
-20-60
Supply voltage
DC5V, 12V~24V optional (specify the required voltage on orders)
0utput
1 channel
External dimension
L61×W33×H32mm
Packing size
L90xW60xH40mm
Net weight
30g
Gross weight
50g
Static power consumption
<1W
Output current
<6A
Output power
5V<30W, 12V<72W, 24V<144W

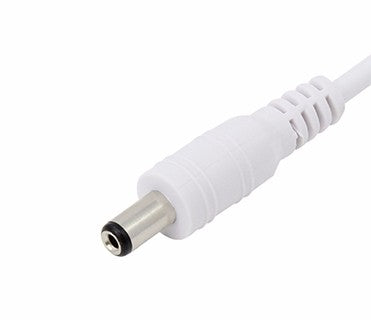

Detailed Images

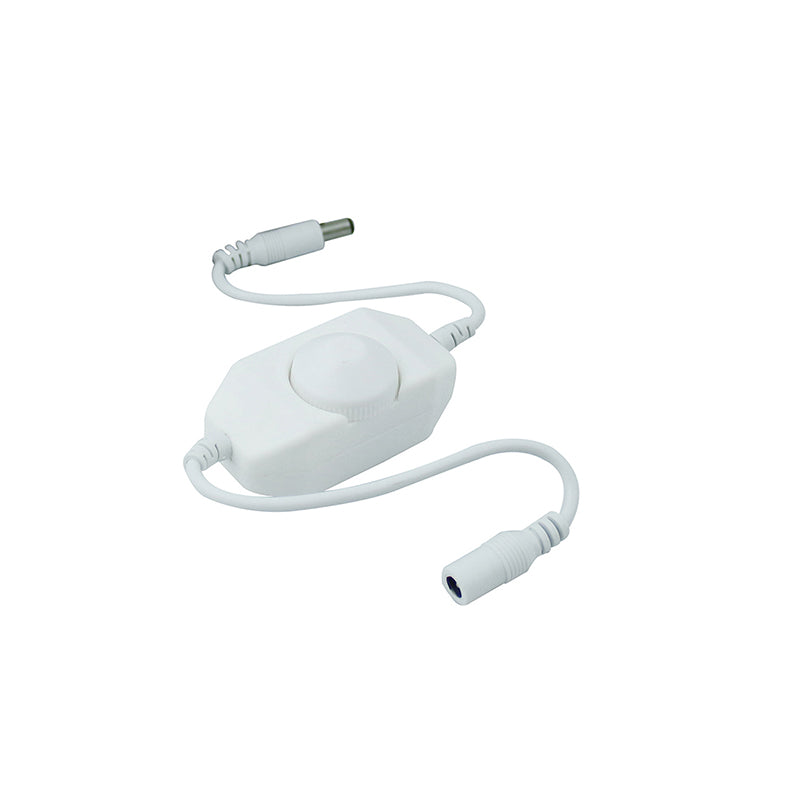

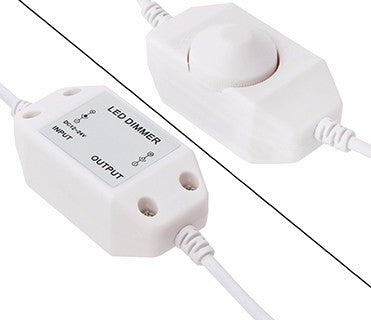

Knob Dimmer
Direction for use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2. Adopt rotary button, its function as follows:



Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.

Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.
