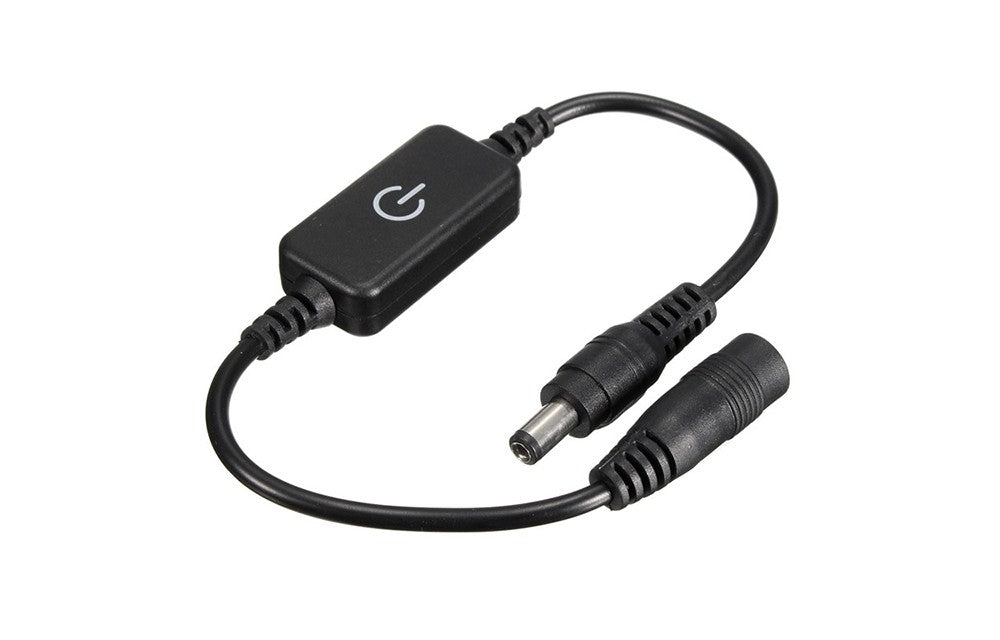

1 Channel PWM LED Dimmer 12v LED MINI Dimming controller
$ 4.00 USD
Couldn't load pickup availability
Product Description
Mini 3 keys Single color controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.
Technical Parameters:
|
Working temperature
|
-20-60℃
|
Input voltage
|
DC12~24V
|
|
Output
|
1 circuit
|
Connection mode
|
Common anode
|
|
Controller size
|
L40.0×W12.0×H5mm
|
Gross weight
|
11g
|
|
Output current
|
<6A(each circuit)
|
Output power
|
12V<72W ; 24V<144W
|
Detailed Image
Function
a. This led controller is used in single color led strip
b. when you press "LIGHT" , it will adjust the brightness ;
c. when you press "SPEED" , it will adjust the speed and on/off ;
d. when you press "MODE" , it can turn to the dynamic models.
Wiring diagram
