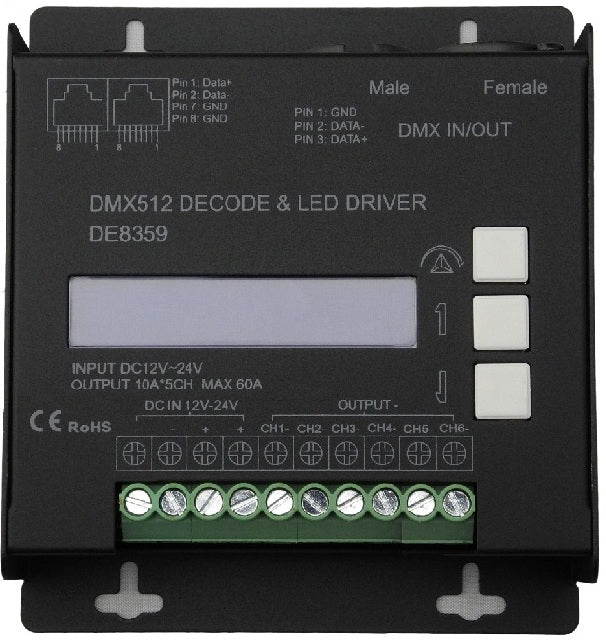

DMX512/1990 Decoder 6 Channel 10A/CH 5Pin RJ45 XLR5 Flicker Free W-RGBW-WW DE8359
This adopts the advanced micro-computer control technology,
it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~6 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light
modulator. It is mainly used for the controlling of buildings & lights applied LED.
Features:
◆Meets DMX512/1990,with RJ45 interface and XLR to choose.
◆256-levels brightness,full-color with driver controls.
◆Power without flashing, smooth at low.
◆6 ways of output channel, single channel maximum 10A output drive, total output is less than 60A.
◆Can achieve asynchronous color changes effect under working with controller.
◆With the light color selected mechanism, and be able to control the light with 1~6 colors.
◆Setting the DMX address freely by LCD screen display.
◆Can be matched with different LED module neatly.
Tech-parameter:
Input: DC12-24V
Output: MAX 60A
Control channels:6CH
MAX Power:720W(12V)/1440W(24V)
Frequency: 5KHZ/10KHZ
Signal Input:DMX-512/1990
Digital signal Connection: RJ45&XLR Interface
Work Temp.: 0~70°C The light gray level: 256 Protection grade: IP40
Gross Weight:220g Product size: L120*W105*H39(mm) Packing:30pcs/Carton
