Sale!
$ 50.00 USD

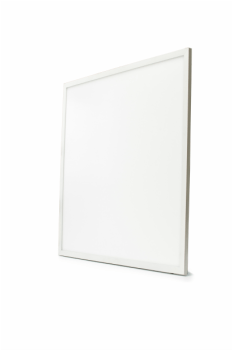

LED Panel 2ft x 2ft

2x2 LED Flat Panel Assembly is the premium choice when it comes to general lighting solutions for business offices, retail stores, and other interior commercial applications. With a even distribution of luminous LED diodes spread across the entire panel, it provides a bright and even glow that will provide excellent light output for the room. The standard two by four size allows our LED panels to be easily integrated into the existing ceiling tiles that most businesses currently use.




Lighting Specifications


Power Output:

35 W

Lumen Output:

3400 lm
Voltage Input: 100-277 VAC
Light Efficacy: 94.28 lm/w
Color Rendering Index (CRI): 80
LED Chip Type: Samsung
Dimmable: Yes
Dimensions: 2' x 2' (W' x L')
Rated Life: 40,000 Hours
Power Factor: >0.92
Driver Efficiency : 90%
Total Harmonic Distortion (THD): 12%


Energy Savings


LED lights are very efficient at turning electricity into visible light output. When compared to traditional incandescent and CFL lighting fixtures, LED lights are able to save approximately 44-55% more energy per luminaire.


Reliability


Our 2x2 LED Panel Assembly has a combination of a robust external design and a series of reliable LED diodes that is able to provide illumination for your building for years to come. LED lights are able to operate for up to 50,000 hours to minimize costs on replacements and maintenance. Standard CFL and incandescent lamps have a typical life span of 15,000 and 2,000 hours, respectively.

Compatibility


These LED panel luminaires we manufacture utilize a 100-277 VAC power supply found in many North American buildings and can be retrofitted into nearly all applications with ease. They are also compatible with various light dimmers to control the amount of output produced in each room. Easy to install and retrofit, these panels can be fitted to nearly any application.

Design


Each 2x2 LED Panel is built with using a high-quality aluminum body back and side with a shatter-resistant PVC lens in the front to protect the LEDs inside. We designed this LED panel to be easily retrofitted into any existing electrical connections for a fast and easy application.

Availability


The 2x2 LED Panel Assembly are always stocked and ready to ship from our Arcadia, CA warehouse.



Applications


  • Office Buildings
  • Storage Facilities
  • Retail Stores
  • Supermarkets
  • Residential
  • Hotels
  • Restaurants
  • Warehouses
  • Parking Lots
  • Churches
  • General Lighting
  • Hospitals
  • Shopping Malls
  • Exhibition Malls




  • Download Specification Sheet
