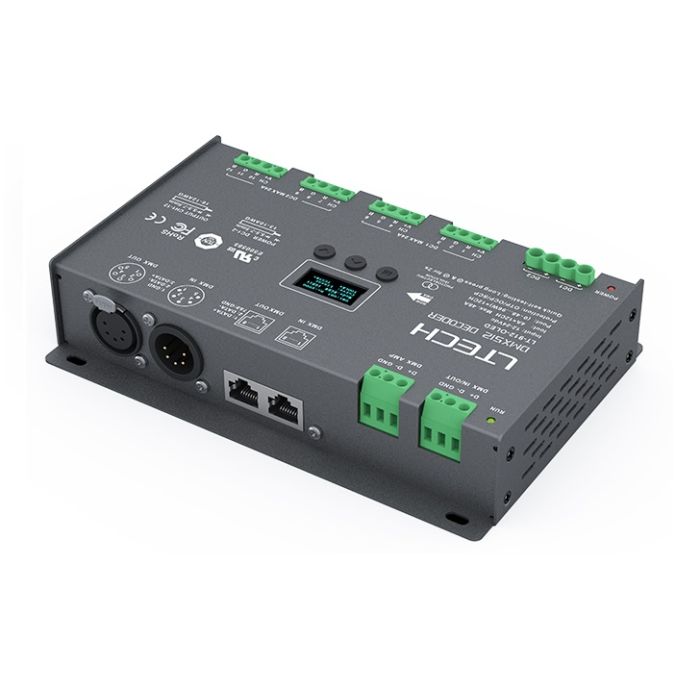

LTech LT-912-OLED 12CH DMX512 RDM LED Decoder Controller 12-24V Constant Voltage

LTech LT-912-OLED 12CH DMX512 RDM LED Decoder Controller 12-24V Constant Voltage

The LTech LT-912-OLED is a high-performance 12-channel DMX512/RDM LED decoder controller designed for precise control of RGB, dimmable, and tunable color LED installations. Supporting 12-24V constant voltage inputs and up to 4A per channel, this decoder delivers reliable output power for a wide range of LED lighting projects. Equipped with OLED display, 5-pin XLR, RJ45, and green terminal DMX interfaces, the LT-912-OLED allows for easy integration into professional lighting setups. Its programmable dimming curves, selectable 8-bit or 16-bit grayscale levels, and full optoelectronic isolation ensure smooth, flicker-free lighting control. Built with short circuit, overtemperature, and overcurrent protection, this decoder provides safe, self-recoverable operation across a wide operating temperature range of -30℃ to 65℃. Ideal for stage, architectural, and commercial LED lighting applications, the LT-912-OLED combines reliability, precision, and flexibility in one compact unit.

Specifications:

• Input Signal: DMX512/RDM
• Input Voltage: 12-24V DC
• Load Current: 4A × 12CH (Max 48A)
• Output Power: (0~48W…96W) × 12CH (Max 1152W)
• DMX Interface: 5-pin XLR, RJ45, Green Terminal
• Compatible Modes: Dim/CT/RGB
• Dimming Curve: 0.1~9.9, Standard, Linear, Logarithmic
• Grayscale Level: 8-bit (256 levels) / 16-bit (65536 levels) selectable
• Optoelectronic Isolation: Yes
• Protection: Short circuit, overtemperature, overcurrent (self-recoverable)
• Operating Temperature: -30℃ ~ 65℃

5 year Warranty
Certifications: UL/TUV/FCC/CE/RoHS
