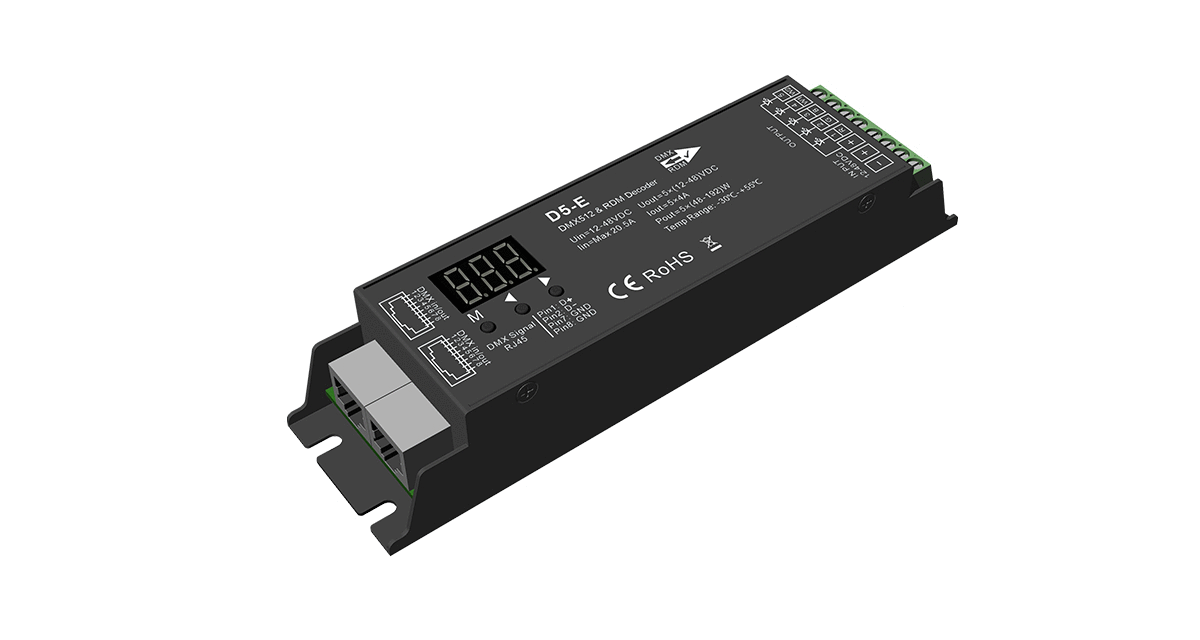

NovaBright D5-E 5CH 4A 12-48VDC CV DMX512 & RDM Decoder for 5CH RGBWA LED Lights

5 channel decoder for RGB-CCT and RGBWA LED light strips. Compliant with DMX512 standards for seamless control. Easily set DMX addresses using the digital display and buttons. RDM-enabled for master-decoder communication and remote address configuration. Adjustable grey levels: 16-bit (65,536) or 8-bit (256). Flexible PWM frequencies from 250 Hz up to 32,000 Hz. Choose between logarithmic or linear dimming curves. Built-in protection against over-heat, over-load, and short circuit with automatic recovery. D5-P features green terminal DMX ports, while D5-E comes with RJ-45 DMX ports.

• Compliant with DMX512 standard protocols.
• Digital numeric display for setting DMX decode start address via buttons.
• RDM function enables communication between DMX master and decoder; DMX decoder address can be set from the DMX master console.
• Selectable grey levels: 16-bit (65,536 levels) or 8-bit (256 levels).
• Selectable PWM frequencies: 250, 500, 1000, 2000, 4000, 8000, 16,000, or 32,000 Hz.
• Selectable dimming curves: logarithmic or linear.
• Built-in protection for over-heat, over-load, and short circuit; automatic recovery.
• D5-P model: green terminal DMX signal ports; D5-E model: RJ-45 DMX signal ports.
