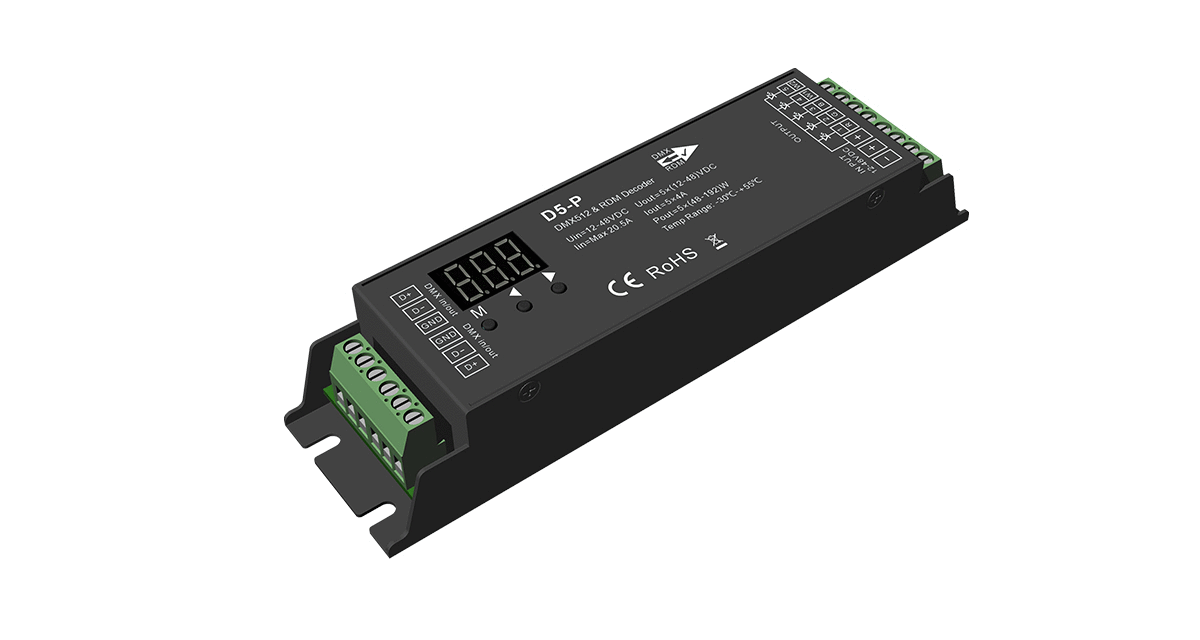

D5-P Professional 5-Channel DMX512/RDM LED Decoder (12–48V DC, 5 x 5A)

Professional DMX Control for High-Performance LED Lighting Systems

The Skydance D5-P DMX512/RDM Decoder is a professional-grade 5-channel constant voltage LED decoder designed for demanding architectural, commercial, entertainment, and smart lighting installations. Engineered for reliability and precision, the D5-P converts standard DMX512 and RDM control signals into smooth, flicker-free PWM output for constant-voltage LED fixtures and strips.

Supporting single-color, Tunable White (CCT), RGB, RGBW, and RGB+CCT LED lighting, the D5-P delivers exceptional dimming performance with 8-bit and 16-bit resolution, configurable PWM frequencies up to 16kHz, and full Remote Device Management (RDM) capability for simplified commissioning and maintenance.

Whether you're building a commercial lighting control system, integrating DMX into home automation, or installing high-end architectural lighting, the D5-P provides the flexibility, performance, and reliability professionals demand.

Professional Features

• Full DMX512 & RDM Compatible
• 5 Independent Constant Voltage PWM Outputs
• 5A Output Per Channel
• Supports 12–48V DC Power Supplies
• Up to 600W Total Output @ 24V
• Up to 1200W Total Output @ 48V
• Compatible with:
  • Single Color
  • Tunable White (CCT)
  • RGB
  • RGBW
  • RGB+CCT LED Strips
• OLED Display with intuitive programming
• Adjustable DMX Start Address
• Standalone Master Mode
• Decoder Mode
• Selectable 8-bit or 16-bit Dimming Resolution
• Adjustable PWM Frequency:
  • 250Hz
  • 500Hz
  • 2kHz
  • 8kHz
  • 16kHz
• Gamma Correction for smooth low-level dimming
• Built-in Test Mode
• Memory Function retains settings after power loss

Exceptional Dimming Performance

Unlike entry-level DMX decoders, the D5-P utilizes high-resolution PWM technology to produce incredibly smooth brightness transitions without stepping or visible flicker.

Perfect for:

• Film & television production
• Photography studios
• Museums
• Retail displays
• Luxury residential lighting
• Commercial architectural projects

Selectable PWM frequencies up to 16kHz dramatically reduce camera flicker while providing silent operation.

Full RDM Support

Remote Device Management (RDM) allows installers to remotely configure and monitor connected decoders without manually accessing every device.

Benefits include:

• Remote DMX addressing
• Device identification
• Status monitoring
• Simplified commissioning
• Faster troubleshooting
• Reduced installation time

Ideal for large-scale lighting networks.

Flexible LED Compatibility

The D5-P supports virtually any constant-voltage LED product:

• Single Color LED Tape
• Warm White LED Strip
• Cool White LED Strip
• Tunable White (CCT)
• RGB LED Strip
• RGBW LED Strip
• RGB+CCT LED Strip
• Constant Voltage LED Fixtures
• LED Cove Lighting
• Accent Lighting
• Landscape Lighting

Built for Professional Installations

Applications include:

• Architectural Lighting
• Commercial Buildings
• Hotels
• Restaurants
• Casinos
• Museums
• Retail Stores
• Entertainment Venues
• Nightclubs
• Stage Lighting
• Theme Parks
• Luxury Homes
• Smart Home Automation
• Custom LED Projects

Multiple DMX Connection Options

Designed for seamless integration into professional lighting systems, the D5-P supports multiple DMX connection methods:

• RJ45 DMX
• 3-Pin XLR DMX
• Screw Terminal DMX
• DMX Signal Pass-Through

This flexibility makes it ideal for both new installations and retrofits.

Advanced Protection

Built-in electronic protection safeguards both the decoder and connected lighting:

• Overload Protection
• Short Circuit Protection
• Over Temperature Protection
• Automatic Recovery
• Reverse Wiring Protection

These features ensure reliable long-term performance in demanding environments.

Technical Specifications

Why Choose the D5-P?

The Skydance D5-P combines professional performance with exceptional flexibility, making it an excellent choice for lighting professionals and integrators. High-resolution dimming, configurable PWM frequencies, RDM support, and broad voltage compatibility provide reliable control for projects ranging from residential smart lighting to large commercial installations.
