$ 65.00 USD

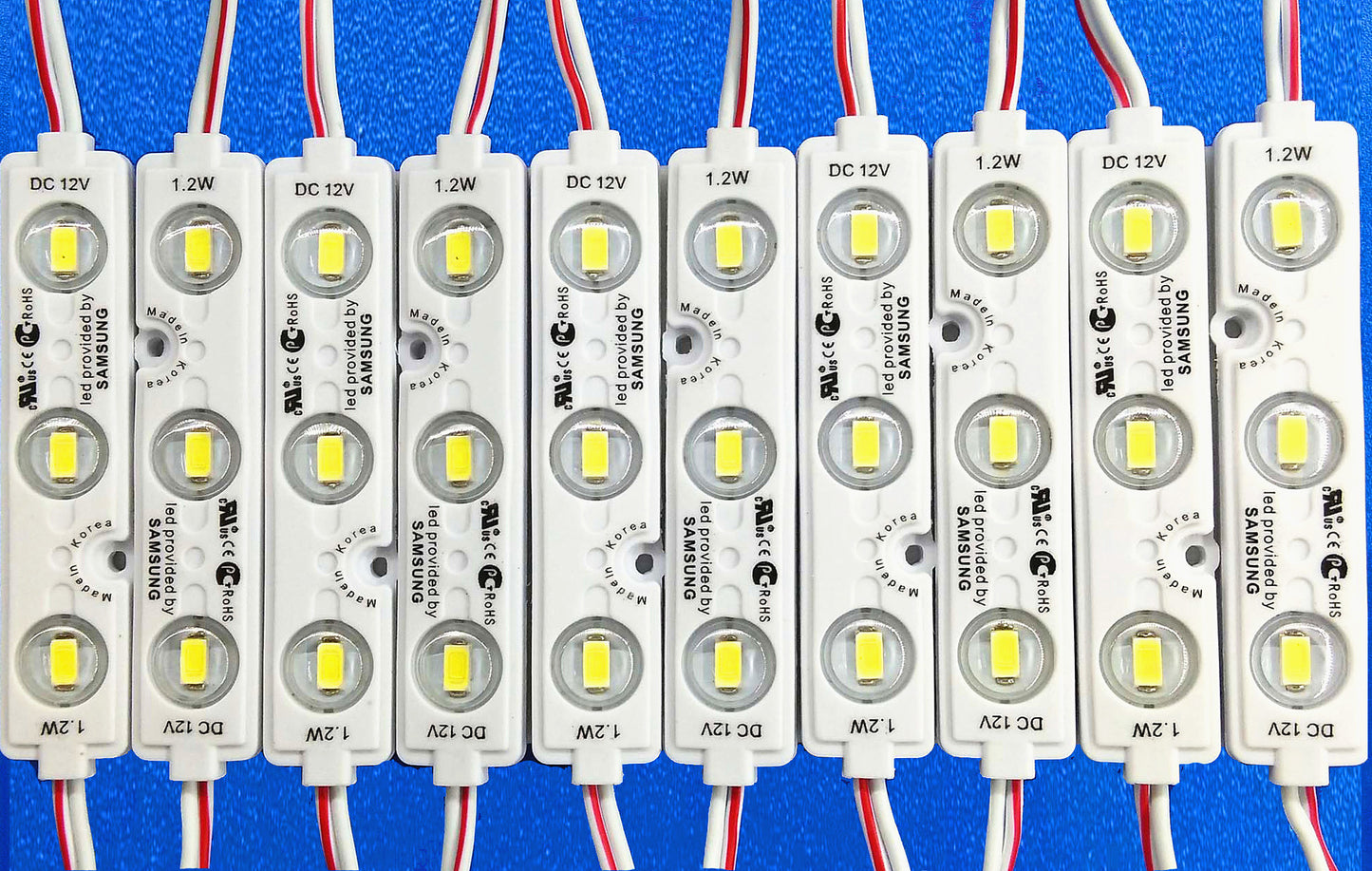

The NovaBright Torch is an ultra bright LED module 12VDC and ideal for lighting channel letters and signs. It is UL listed in case the signs need to be inspected. This is our newest LED module with Samsung LED chip. It uses the 5730SMD Samsung Chip which is 55 Lumens per LED so it is about 2 to 3 times the brightness of regular modules. These are 12V and ideal for sign lighting and back lighting. It also comes with a 5 year warranty.

Download Data Sheet For 5730S3-6000K

SMD Type 5730 SMD
Lumen 55-60 Lm
DIMENSIONS 5.7mm*3.0mm*0.9mm
Power 0.4w per LED
Color Rendering Index ≥90Ra
COLOR TEMP. White 6000K
Current 150mA
Operating Temperature -30℃—+85℃
Storage Temperature -40℃—+90℃
Operating Humidity <95%
Storage Humidity <95%


Module Technical Specs

Input Voltage: 12VDC
Wattage: 1.2 Watts Per Module
LED Quantity: 3 pcs
Lumens: 160 Lm
Dimensions: 75mm x 15mm (L x W)
Material: ABS Fireproof V0
IP Level: IP67
Beam Angle: 160degrees
Lifespan: ≥80,000 hours
Certifications: UL Listed
Warranty: 5 years
