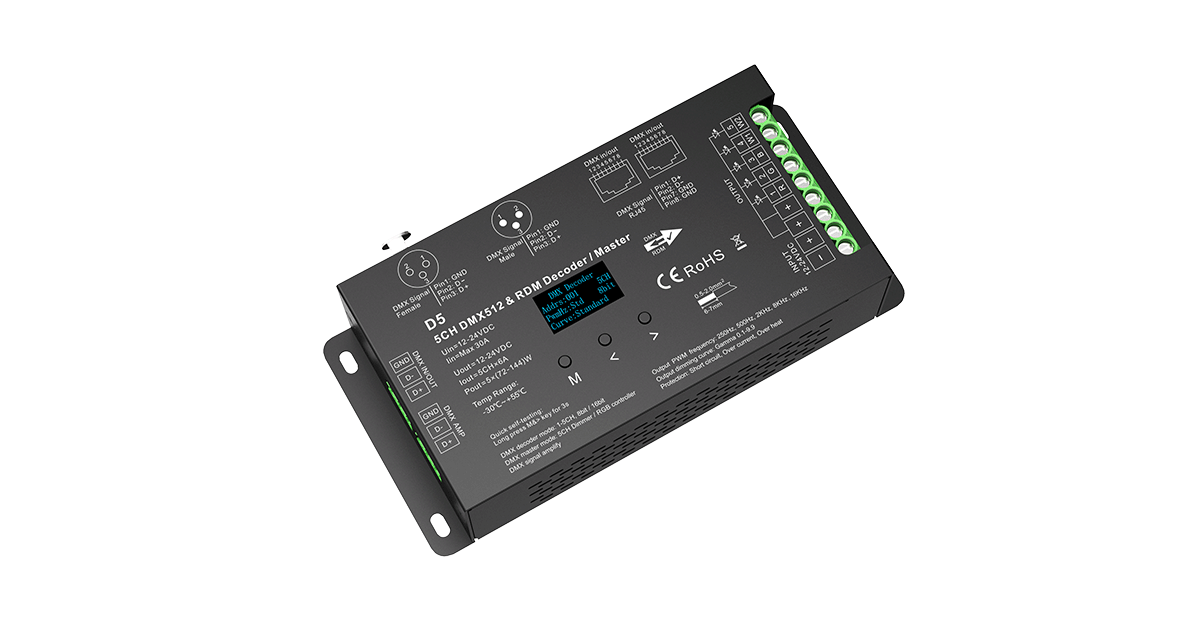

D5 Professional 5-Channel DMX512/RDM LED Decoder (12–24V DC, 6A/Channel)

Take complete control of your LED lighting installations with the D5 Professional DMX512/RDM Decoder, a high-performance 5-channel constant voltage decoder engineered for demanding architectural, commercial, entertainment, and custom lighting applications.

Designed for professional installers and lighting integrators, the D5 converts industry-standard DMX512 control signals into smooth PWM output for constant-voltage LED lighting. Whether you're controlling RGB, RGBW, RGB+CCT, tunable white, or single-color LED strips, the D5 delivers exceptionally smooth dimming, precise color mixing, and reliable operation.

Featuring full RDM (Remote Device Management) support, an integrated OLED display, configurable PWM frequencies up to 16kHz, and selectable 8-bit or 16-bit dimming resolution, the D5 offers advanced control capabilities typically found in premium lighting systems. It also supports both decoder mode and standalone master mode, allowing it to operate independently without a DMX controller when needed.

Professional Features

• 5 Constant Voltage PWM Outputs
  • 6A per channel
  • Supports up to 720W at 24V
• Compatible with:
  • Single Color
  • Tunable White (CCT)
  • RGB
  • RGBW
  • RGB+CCT LED strips
• DMX512 & RDM compatible
• Decoder or Stand-Alone Master operation
• High-resolution OLED display
• Simple three-button programming interface
• Supports 1CH, 2CH, 3CH, 4CH, and 5CH operating modes
• 8-bit (256 levels) or 16-bit (65,536 levels) dimming resolution
• Adjustable PWM frequencies:
  • 250Hz
  • 500Hz
  • 2kHz
  • 8kHz
  • 16kHz
• Adjustable gamma dimming curve for precise brightness control
• Built-in RGB effects with adjustable speed and brightness
• Fast self-test mode for troubleshooting
• Automatic recovery from overload, short circuit, and over-temperature conditions

Built for Professional Installations

The D5 is engineered for demanding lighting environments including:

• Architectural façade lighting
• Commercial buildings
• Hotels & resorts
• Restaurants
• Stage & theatrical lighting
• Entertainment venues
• Museums
• Retail displays
• Landscape lighting
• Smart home automation
• High-end residential lighting
• LED coves
• Under-cabinet lighting
• DMX-controlled accent lighting

Flexible Connectivity

The D5 supports multiple professional DMX connection methods:

• RJ45 DMX
• 3-Pin XLR DMX
• DMX terminal block
• DMX signal amplification output

This flexibility allows seamless integration into both new and existing DMX lighting systems.

Technical Specifications

Why Choose the D5?

Unlike basic DMX decoders, the D5 provides professional-grade features that simplify installation and improve lighting performance:

• Smooth, flicker-free dimming for video and architectural applications
• High-frequency PWM reduces visible flicker on cameras
• Remote Device Management (RDM) simplifies addressing and configuration
• Multiple decoding modes eliminate the need for different controllers
• Built-in standalone functionality enables independent operation without a DMX console
• Rugged design with automatic protection for long-term reliability

Applications

Ideal for controlling:

• RGB LED strips
• RGBW LED strips
• RGB+CCT LED strips
• Tunable White LED tape
• Single-color LED strips
• Constant-voltage LED fixtures
• Architectural LED lighting systems
• DMX automation projects

Hollywood LEDS Advantage

When you purchase from Hollywood LEDS, you're getting more than just hardware. We provide knowledgeable U.S.-based support, fast shipping, and expert guidance to help you design, configure, and troubleshoot your DMX lighting projects with confidence.

Professional DMX control. Reliable performance. Built for demanding LED installations.
