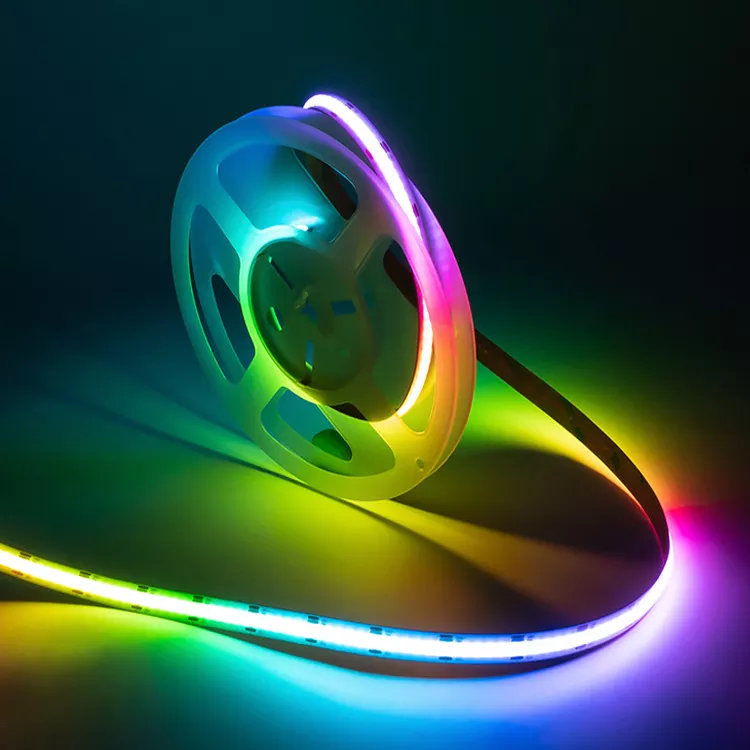

NovaBright WS2811 24V Addressable RGB COB LED Strip – 480 LEDs/m Dotless Digital Pixel Light

WS2811 24V Addressable RGB COB LED Strip – 480 LEDs/m Dotless Digital Pixel Light

Create smooth, dynamic color effects without visible LED dots with this WS2811 24V Addressable RGB COB LED Strip. Combining individually controlled digital pixel technology with high-density COB construction, this strip delivers a continuous-looking line of RGB light that's ideal for architectural lighting, entertainment installations, displays, signs, gaming rooms, bars, events, and custom LED projects.

Featuring 480 LED chips per meter and 10 addressable pixels per meter, the strip provides smooth COB illumination while allowing compatible WS2811 controllers to generate dynamic color-changing effects across the strip.

Addressable WS2811 Digital RGB Control

Unlike a standard RGB LED strip where the entire strip typically displays the same color, this strip uses WS2811 addressable pixel control.

With 10 pixels per meter, compatible digital controllers can control different sections of the strip to create dynamic lighting effects such as:

• Color chases
• Moving patterns
• Color transitions
• Sequential effects
• Animated RGB effects
• Custom programmed lighting sequences

This makes it an excellent choice for installations where you want more than simple static RGB color changing.

High-Density 480 Chips/m COB Design

The strip features an impressive 480 LED chips per meter using COB (Chip-on-Board) technology.

The high-density COB construction creates a much smoother and more continuous-looking line of light compared with conventional LED strips where individual LED points can be visible.

This makes it especially useful for exposed installations and applications where a clean, professional dotless lighting appearance is desired.

24V DC Operation

Operating at 24V DC, this WS2811 COB pixel strip is designed for low-voltage LED lighting installations.

The 24V architecture is particularly useful for longer LED strip installations while providing the digital control capabilities of the WS2811 platform.

10 Addressable Pixels per Meter

The strip provides 10 pixels per meter.

Each pixel section is approximately 100mm (3.94 inches) long. The strip can be cut at the designated 100mm cut points, making it easy to customize the strip length for your installation while maintaining the proper pixel sections.

Wide 180° Beam Angle

COB technology provides an ultra-wide 180° beam angle, helping distribute light evenly across the illuminated surface.

The combination of the wide beam angle and high LED density helps create smooth architectural and decorative lighting effects without the concentrated points of light commonly associated with traditional LED tape.

Product Specifications

Easy Installation with 3M Adhesive Backing

The strip features genuine 3M 300LSE adhesive tape on the back for convenient mounting to suitable clean, smooth surfaces.

Its narrow 10mm PCB width also makes it suitable for installation in compatible LED aluminum channels and profiles.

For professional installations and improved heat management, mounting the strip inside an appropriately sized aluminum LED channel is recommended.

Ideal Applications

• Architectural accent lighting
• Cove lighting
• Ceiling lighting
• Wall lighting
• Entertainment lighting
• Bars and clubs
• Restaurants
• Game rooms
• Home theaters
• Retail displays
• Trade show displays
• Stage and event lighting
• LED signs
• Backlighting
• Display cases
• Furniture lighting
• Custom lighting installations
• Animated accent lighting
• Digital pixel lighting projects
• Holiday and decorative lighting

COB Smoothness + WS2811 Pixel Control

This strip combines two highly useful LED technologies in one product.

COB technology provides the smooth, continuous-looking illumination that helps eliminate the visible LED dots associated with conventional strips.

WS2811 addressable pixel technology provides digital RGB control, allowing different pixel sections along the strip to display different colors and participate in animated effects.

The result is an addressable RGB strip capable of producing dynamic effects while maintaining the clean appearance of COB lighting.

10mm PCB for Compact Installations

At only 10mm wide, the strip can fit into many compact lighting installations and compatible LED aluminum channels.

The narrow PCB makes it useful for architectural details, displays, furniture, signs, coves, and other locations where installation space is limited.

Important Installation Information

This model is rated IP20 non-waterproof and is intended for dry indoor installations unless additional environmental protection is provided.

A compatible 24V DC power supply and WS2811-compatible addressable LED controller are required for operation.

When selecting a power supply, calculate the required capacity based on the installed strip length and the strip's rated consumption of 12 watts per meter, while allowing appropriate additional power capacity for reliable operation.

Always cut the strip only at its designated 100mm cutting points.

Why Choose WS2811 Addressable COB?

If you want the dynamic effects of a digital pixel LED strip without the obvious individual LED dots of conventional addressable tape, this WS2811 COB strip provides an excellent solution.

• WS2811 digital addressable RGB control
• 480 high-density LED chips per meter
• 10 individually addressable pixel sections per meter
• Smooth COB-style dotless illumination
• 24V DC operation
• 12W/m power consumption
• Wide 180° light distribution
• Slim 10mm PCB
• 100mm cutting intervals
• 3M 300LSE adhesive backing

It's a versatile choice for professional architectural installations, entertainment environments, commercial displays, signage, and custom addressable LED lighting projects.
